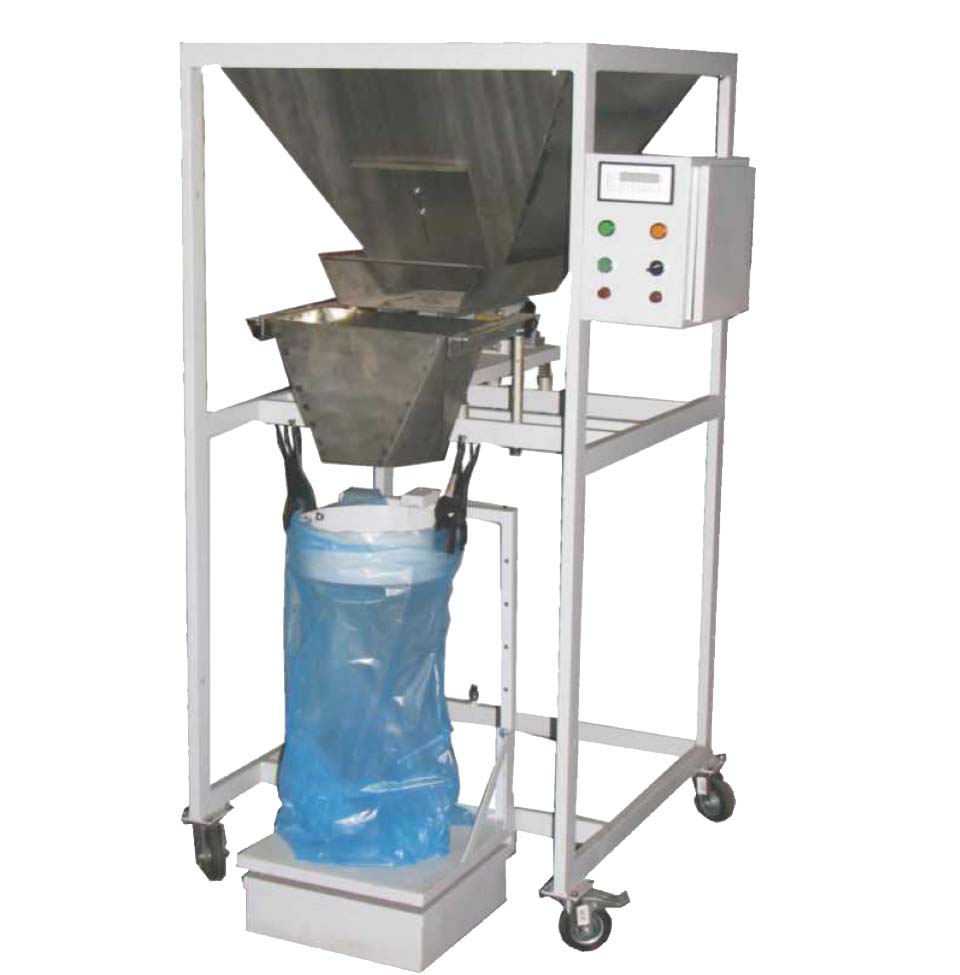

UFU-3 (model 13)

UFU-3 (model 13) machine is designed for filling
and packing food/nonfood free flowing products that
are not very prone to sticking and clumping (cereals,
sugar, pasta, pellets, building mixes, soil, etc.)
in ready packaging in semiautomatic mode.
It is possible to install a grid for sieving the product
in the vibrating tray.



Technical data:
Capacity, pcs/min max 10
Maximum weight tolerance set by operator
Type of ready packaging according to specification
Supply voltage/frequency, V/Hz 220–230/50
Measuring range, kg 2.0–50.0
Power, kW 0.6
Overall dimensions, mm max 1120 x 1050 x 1750
Batch hopper capacity, l min 150
Machine weight, kg max 180
