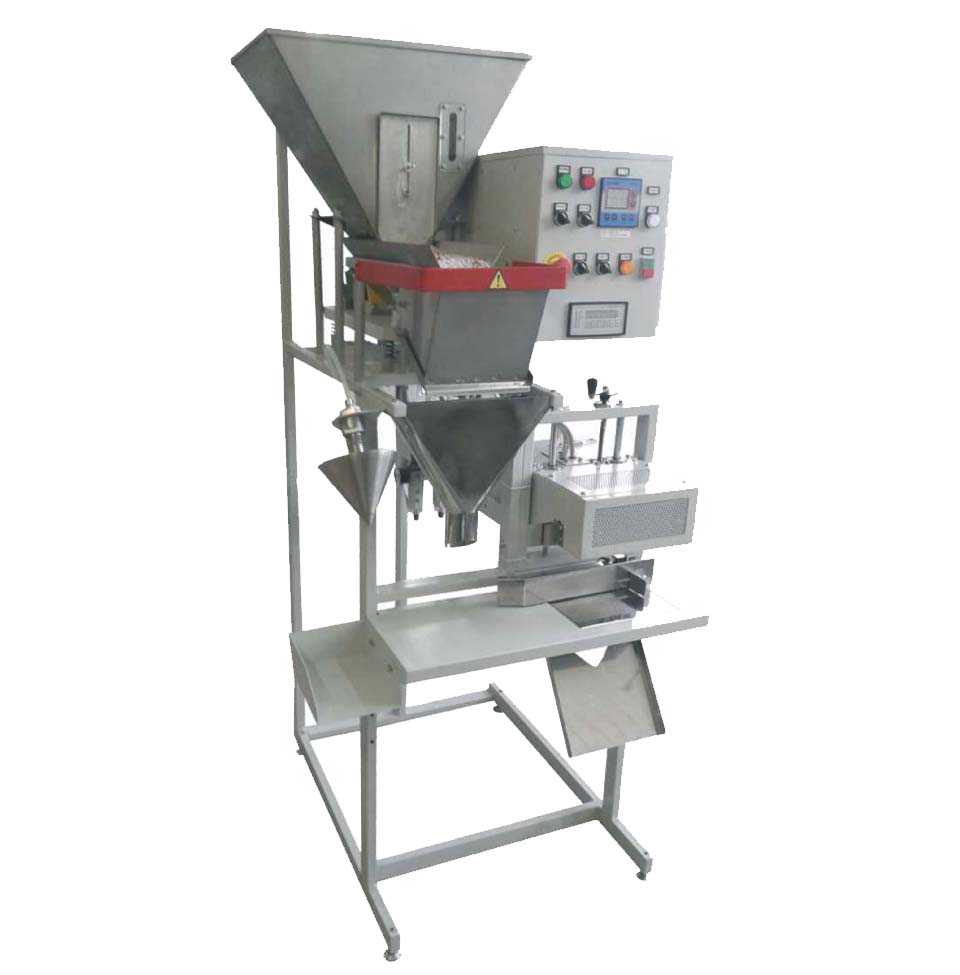

UFU-3 (model 21)
UFU-3 (model 21) machine is designed for filling
and packing food/nonfood free flowing products that
are not prone to sticking and clumping (cereals, sugar,
pasta, flour, starch, spices, etc.) in the package
“Doy-pack” or any package with a flat bottom in
semiautomatic mode with automatic sealing and
removal of the package from the working area of
the machine. The machine can be completed with
one or two electronic weight feeders. The machine
can be supplied with protective hermetic box. It’s
possible quick-removable and easily washing execution.
Technical data: | |
---|---|
Capacity, pcs/min | max 20 |
Maximum weight tolerance | set by operator |
Type of ready packaging | bag «Doy-pack», «Stabilo» |
Dimensions of bag | 60*100 – 250*400 |
Batch hopper capacity, l | 36–150 |
Measuring range, g | 30–5000 |
Compressed air pressure, bar | 5–7 |
Compressed air consumption, l/min | max 100 |
Power, kW | 0.6–1.5 |
Supply voltage/frequency, V/Hz | 220–230/50 |
Overall dimensions, mm | 1200 x 1000 x 2010 |
Machine weight, kg | 120–250 |
