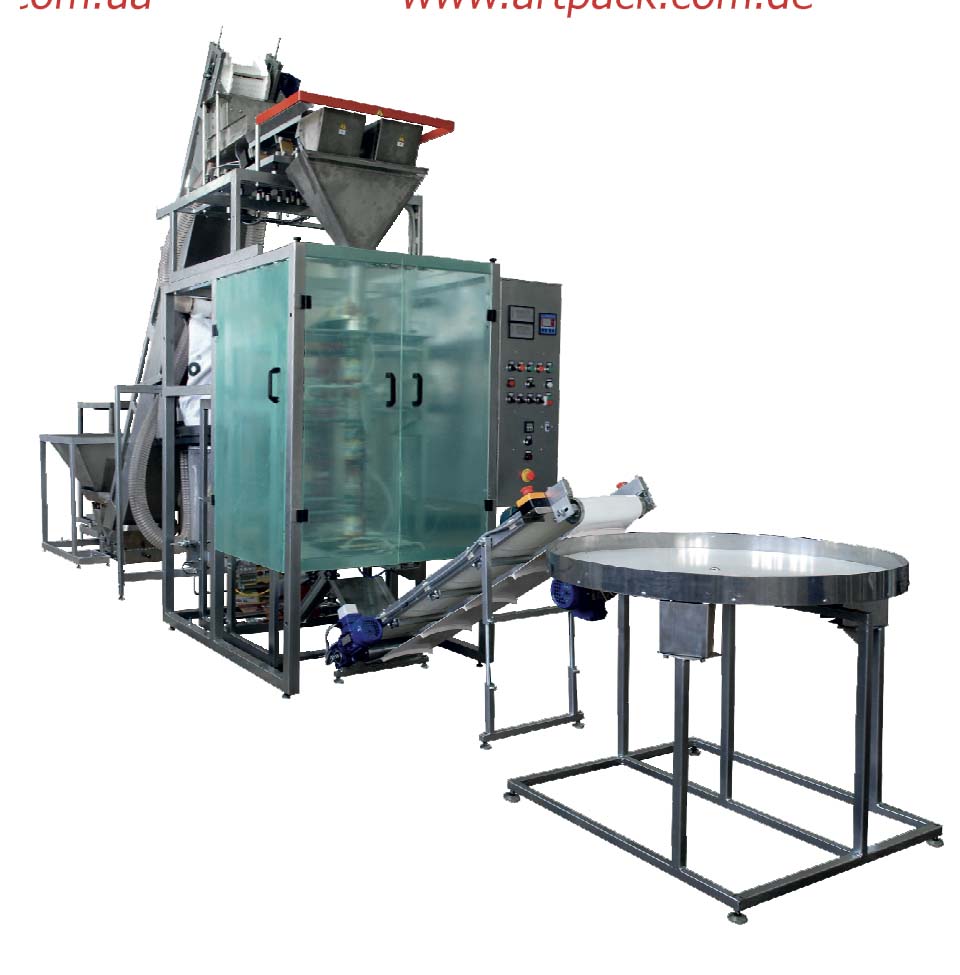

UFU-5 (model 01 in complete assembly)
UFU-5 (model 01 in complete assembly) machine is used for filling and packing automatically food/nonfood free flowing products that are not prone to sticking and clumping (cereals, sugar, jelly beans, pasta with max length 65 mm, etc.) in polypropylene or multilayer film.
This machine can be completed with one, two or three electronic weight feeders.
| Technical data: | |
|---|---|
| Capacity, pcs/min | max 28 |
| Maximum weight tolerance | set by operator |
| Measuring range, kg | 0.03–1.0 |
| Film width, mm | max 450 |
| Bag length, mm | max 360 |
| Supply voltage/frequency, V/Hz | 220–230/50 |
| Power, kW | 3.5 |
| Overall dimensions, mm | max 4500 x 2000 x 3500 |
| Batch hopper capacity, l | min 110 |
| Machine weight, kg | max 950 |
| Compressed air pressure, bar | 5–7 |
| Compressed air consumption, L/min | max 500 |
