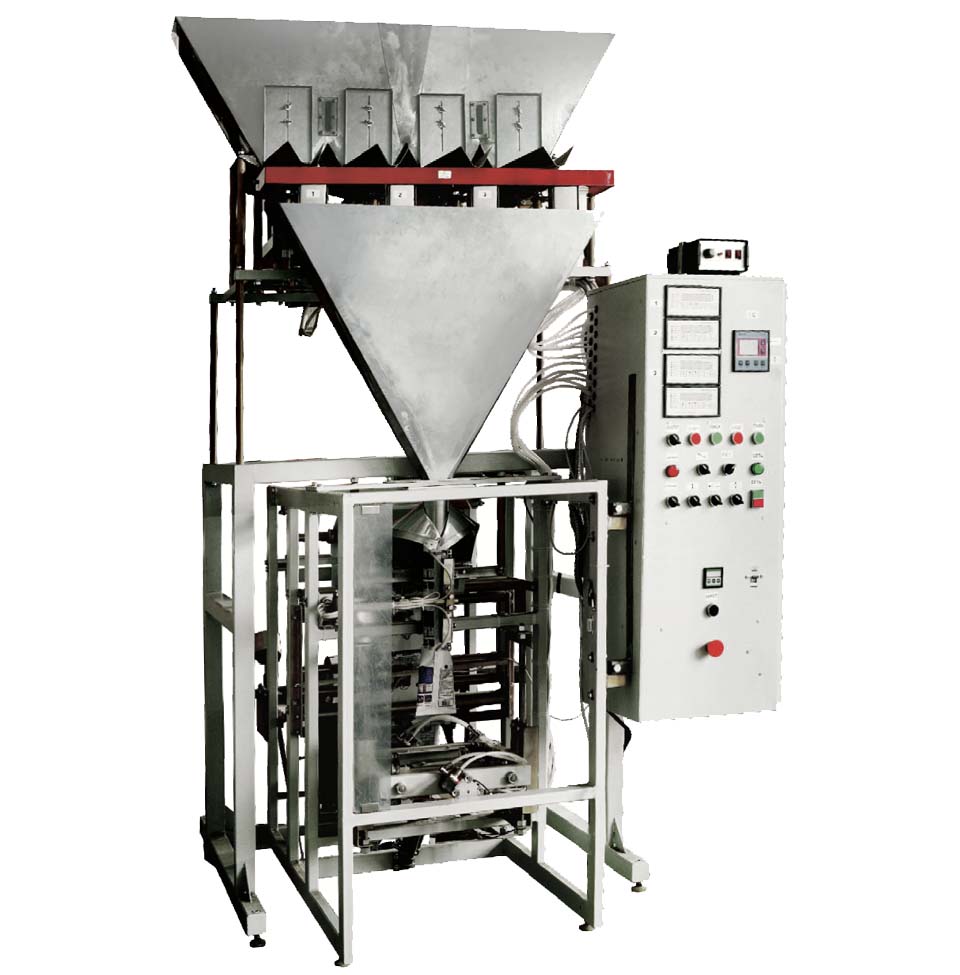

UFU-5 (model 04)
UFU-5 (model 04) machine is designed for automatic filling and packing of free-flowing food and non-food products that are not prone to sticking and clumping (such as seeds, nuts, fast-cooking porridges, etc.) into polypropylene or multilayer film.
This machine is completed with four electronic weight feeders.
| Parameter | Value |
|---|---|
| Capacity, pcs/min | max 30 |
| Maximum weight tolerance | set by operator |
| Measuring range, g | 0.5–100 |
| Film width, mm | max 320 |
| Bag length, mm | max 180 |
| Supply voltage/frequency, V/Hz | 220–230/50 |
| Power, kW | 2.0 |
| Overall dimensions, mm | max 1150 × 1250 × 2200 |
| Batch hopper capacity, l | min 45 |
| Machine weight, kg | max 300 |
| Compressed air pressure, bar | 5–7 |
| Compressed air consumption, L/min | max 360 |
