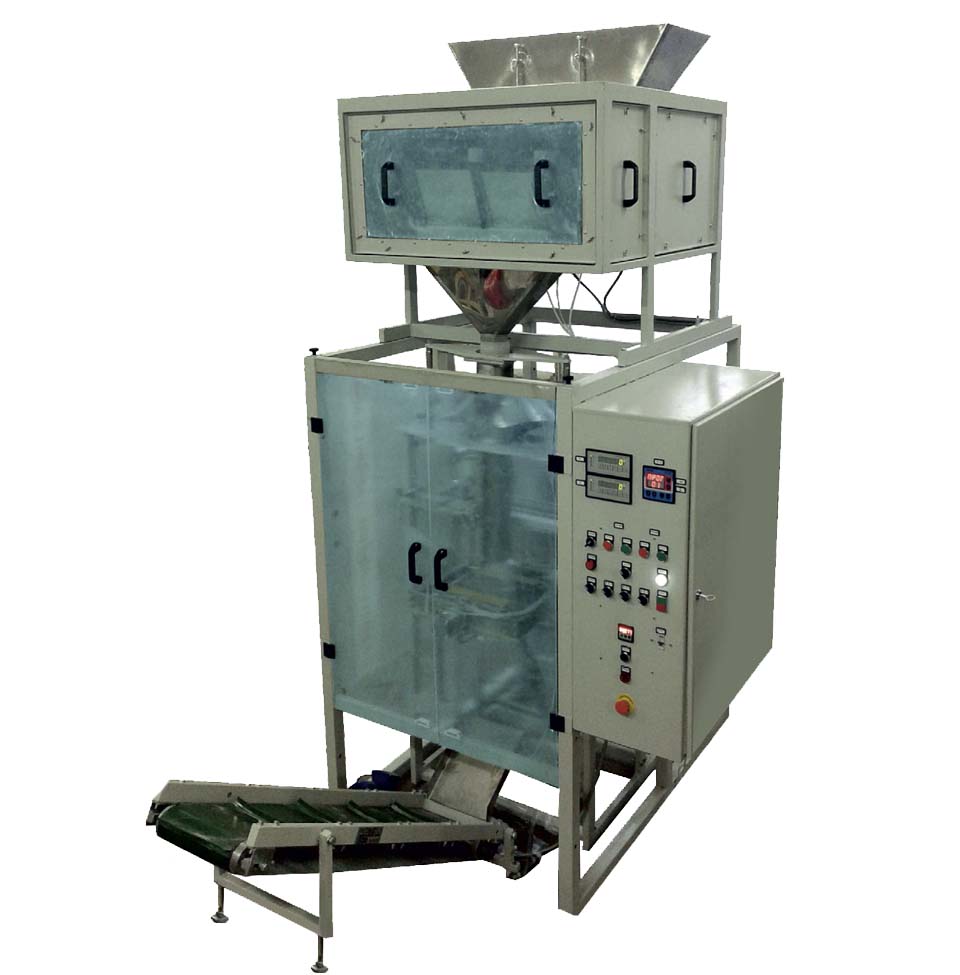

UFU5 (model 1 with protective box)
UFU5 (model 1 with protective box) is used for filling and packing food/nonfood free flowing moderately dusty products that are not prone to sticking and clumping (powdered milk, powder of mustard, semolina, dry concentrates with starch no more than 30%, milled spices etc.) in polypropylene or multilayer film in the automatic mode.
This machine can be completed with one, two or three electronic weight feeders.
| Technical data: | |
|---|---|
| Capacity, pcs/min | max 20 |
| Maximum weight tolerance | set by operator |
| Measuring range, kg | 0.03–1.0 |
| Film width, mm | max 450 |
| Bag length, mm | max 360 |
| Supply voltage/frequency, V/Hz | 220–230/50 |
| Power, kW | 1.5 |
| Overall dimensions, mm | max 1150 x 1600 x 2820 |
| Batch hopper capacity, l | min 110 |
| Machine weight, kg | max 600 |
| Compressed air pressure, bar | 5–7 |
| Compressed air consumption, L/min | max 500 |
