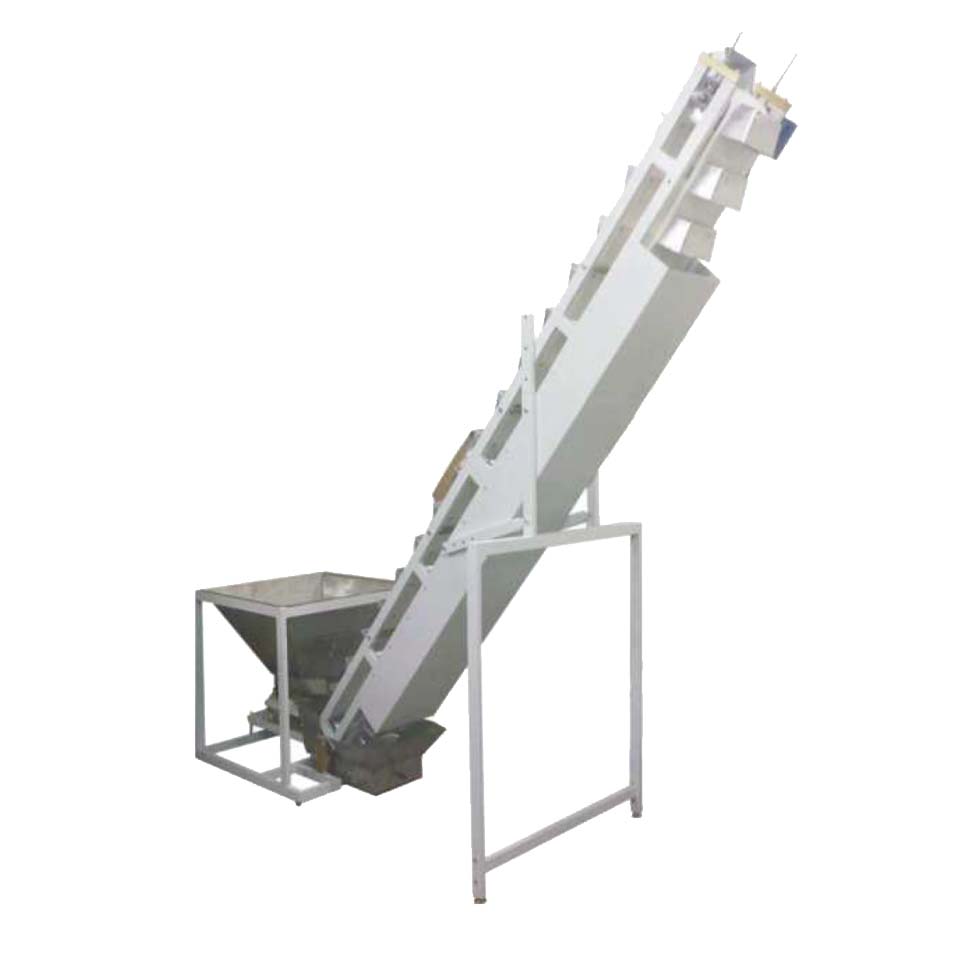

Universal belt conveyor

Universal belt conveyor is designed to supply both free
flowing products that are not prone to sticking and
clumping (cereals, sugar, dragee, pasta with max length 65
mm, etc.) and large-size food/nonfood products max 70 mm
in diameter (pelmeni, dumplings, gingerbreads, cookies, soy
meat, pistachios, lump sugar, granulated nutrition for
animals, etc.) into the hopper of filling/packing machine.
This conveyor is completed with block of automatics to
maintain the level of product and also with overload
protection unit. Can be completed with modular tape
(with/without perforation), tape with flexible sidewalls
or a tape with buckets. Possible execution with
dust-protection screens.

Technical data:
Filling speed, L/hour max 4400
Supply voltage/frequency, V/Hz 220–230/50
Power, kW 1,0
Batch hopper capacity, l min 150
Batch hopper height, mm max 1000
Elevation of product, mm 2400–2850
Overall dimensions, mm max 2390 × 1000 × 3540
Machine weight, kg max 250
